Submerged MBR

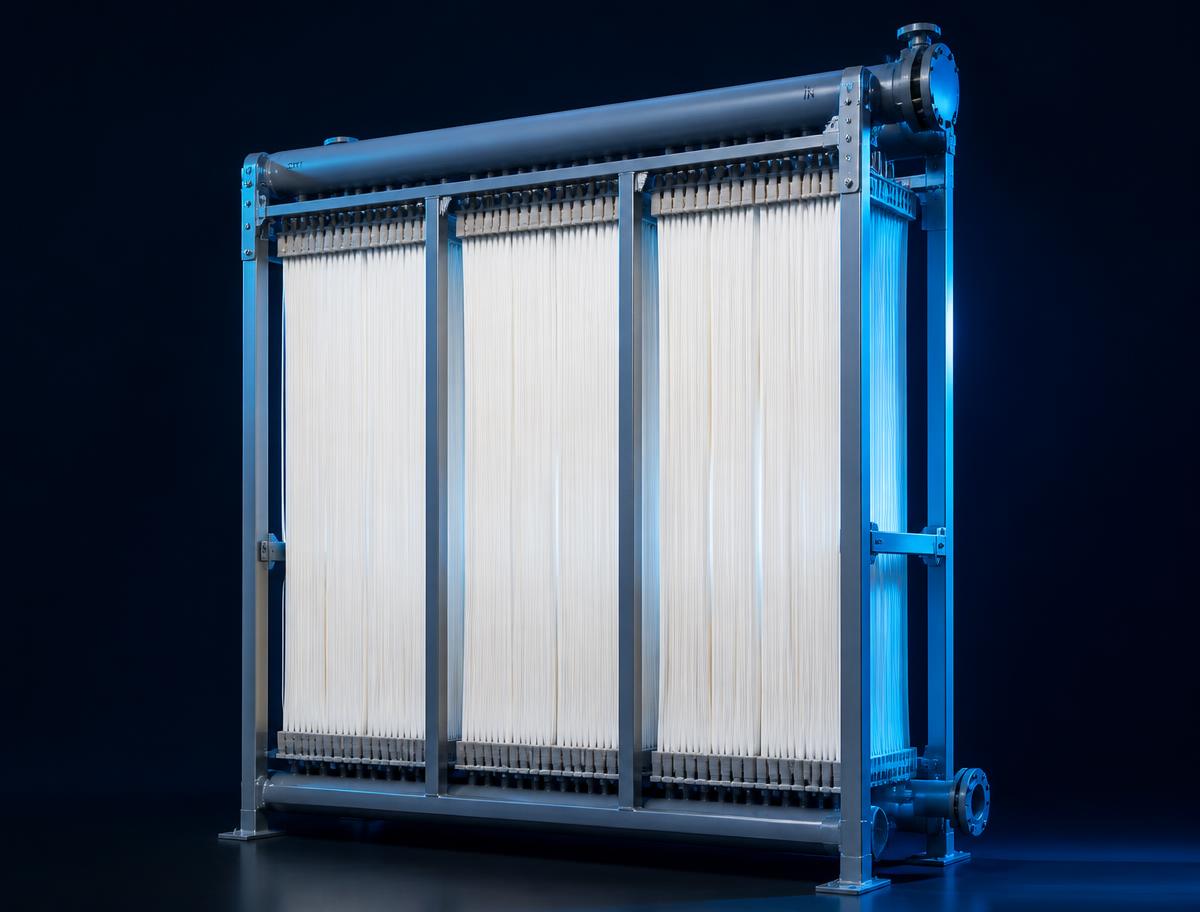

Hollow Fiber Membrane Bio-Reactor (MBR)
SV-MBR Series — submerged reinforced PVDF, 10–50 m² modules
Product description
SV-NanoMetrix™ MBR Series is a high-performance submerged hollow fiber membrane platform for advanced municipal and industrial wastewater treatment. Manufactured using reinforced PVDF hollow fiber technology, the membranes provide exceptional removal of suspended solids, bacteria, viruses and colloidal contaminants while delivering superior permeate quality suitable for reuse.
The MBR Series combines biological treatment and membrane separation into a compact, highly efficient process, eliminating conventional secondary clarification. Reinforced hollow fiber construction offers excellent mechanical strength, superior fouling resistance and long-term reliability under demanding wastewater conditions.
Available in multiple module configurations and membrane areas, the MBR Series suits STP, ETP, CETP, water reuse, tertiary treatment and industrial wastewater recycling, integrating easily into new installations and retrofit projects.
Specifications
| SUF-10A | SUF-20A | SUF-25B | SUF-40B | SUF-30C | SUF-50C | KUBE-20 | KUBE-40 |
|---|---|---|---|---|---|---|---|
| 10 | 20 | 25 | 40 | 30 | 50 | 17.5 | 35 |
| Parameter | Value |
|---|---|
| Membrane Material | Reinforced PVDF |
| Configuration | Submerged Hollow Fiber |
| Pore Size | 0.03 µm |
| Fiber OD | 1.9–2.0 mm |
| Permeate Flux | 12.5–30 LMH |
| Operating pH | 4–10 |
| Operating Temperature | 20–40°C |
Performance figures are nominal values obtained under the standard test conditions stated with each table. Actual performance varies with feedwater chemistry, pretreatment, flux, recovery, temperature, pressure and operating practice. Individual element flow may vary from the nominal value. Specifications are subject to change without notice — request the current datasheet before specifying.
Typical applications
- Sewage treatment plants (STP)
- Effluent treatment plants (ETP)
- Common effluent treatment plants (CETP)
- Tertiary treatment and water reuse
Need a datasheet or pilot support?
Share your feedwater analysis and target recovery — our engineers will recommend the right element and array configuration.
